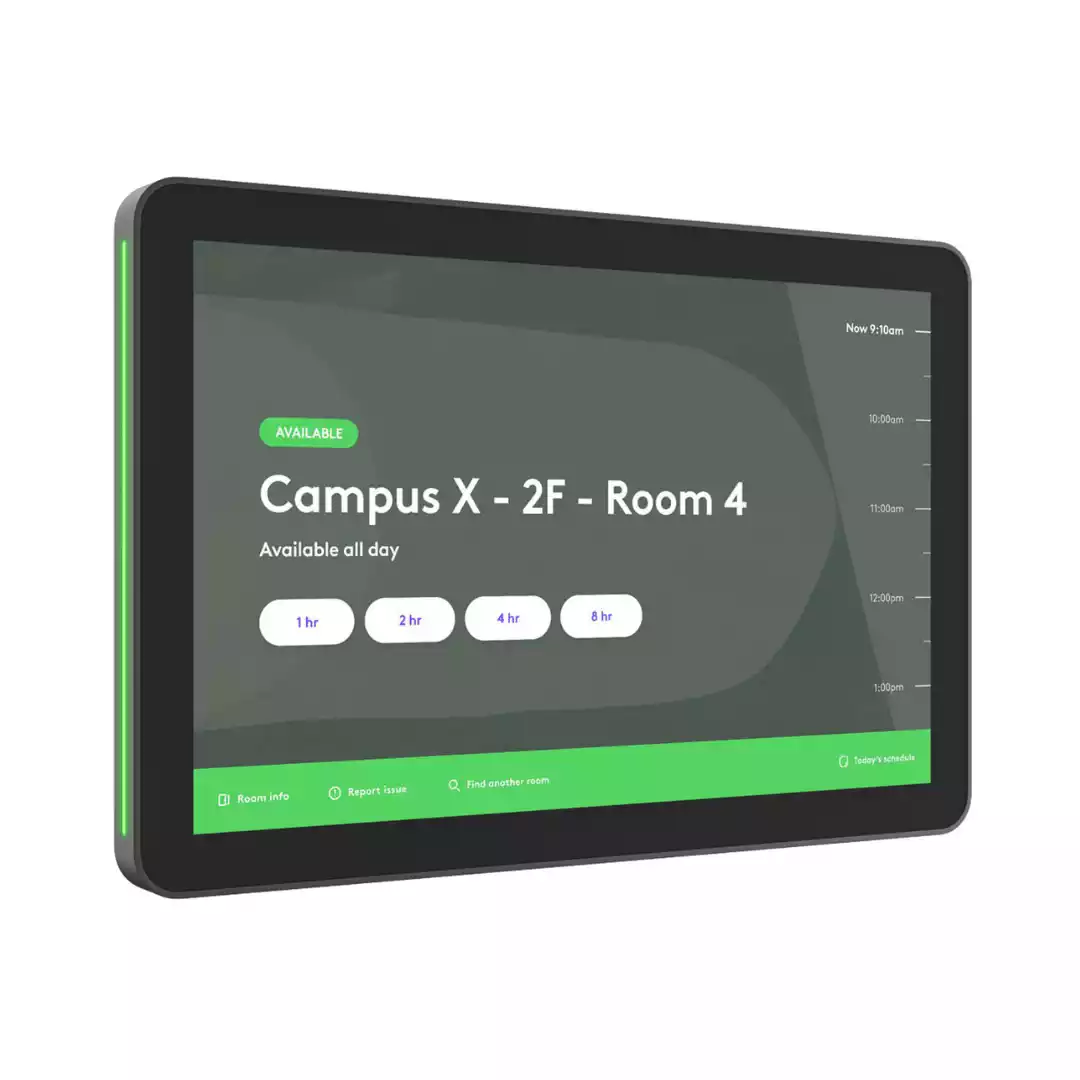

Logitech Tap Scheduler for Meeting Rooms, Graphite

Logitech Tap Scheduler for Meeting Rooms, Graphite

DIMENSIONS

Device-only

• Height: 165 mm
• Width: 246.2 mm
• Depth: 28.5 mm
• Weight: 0.7 kg

Surface-mounted

• Height: 165 mm
• Width: 246.2 mm
• Depth: 31.4 mm

Mullion-mounted

• Height: 165 mm
• Width: 292.6 mm
• Depth: 44.5 mm

TECHNICAL SPECIFICATIONS

Screen

• Size: 10.1 diagonal
• IPS (In-Plane Switching)
• LCD Panel with LED Backlighting
• Resolution: 1280 x 800 resolution
• Touch: Capacitive, 10 points multi-touch
• Brightness: 400 nits
• Contrast: 1000:1
• Anti Fingerprint: Oleophobic coating
• Viewing angle: 85 degrees (U/D/L/R)
• Position angle: 0 degrees (flat on mounting surface)

GENERAL SPECIFICATIONS

• Integrated accelerometer
• Integrated ambient light sensor
• 100 mm x 100 mm VESA FDMI
• Cable exits: horizontal / vertical / center

Logitech Tap Scheduler COMPATIBILITY AND CERTIFICATIONS

• Logitech Tap Scheduler integrates with leading room scheduling solutions as a
• Microsoft Teams Panel
• Zoom Rooms Scheduling Display
• Robin-Powered scheduling panel
• Meetio scheduling panel
• See www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
• Logitech CollabOS platform
• Logitech Sync Remote Management
• Power and Cables
• Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device*

*Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES

• Ethernet: 10/100 Mbps
• WiFi: 802.11a/b/g/n/ac
• Bluetooth 5.0 (inactive, reserved for future use)

Environmental

• Operating Temperature: 0 to 40C
• Storage Temperature: -40 to 70C
• Humidity: 10-95%

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Key Protection: Arm TrustZone

PACKAGE CONTENTS

• Logitech Tap Scheduler
• Multi-surface mount (glass/drywall)
• Corner mount accessory
• Mullion mount
• Mounting hardware
