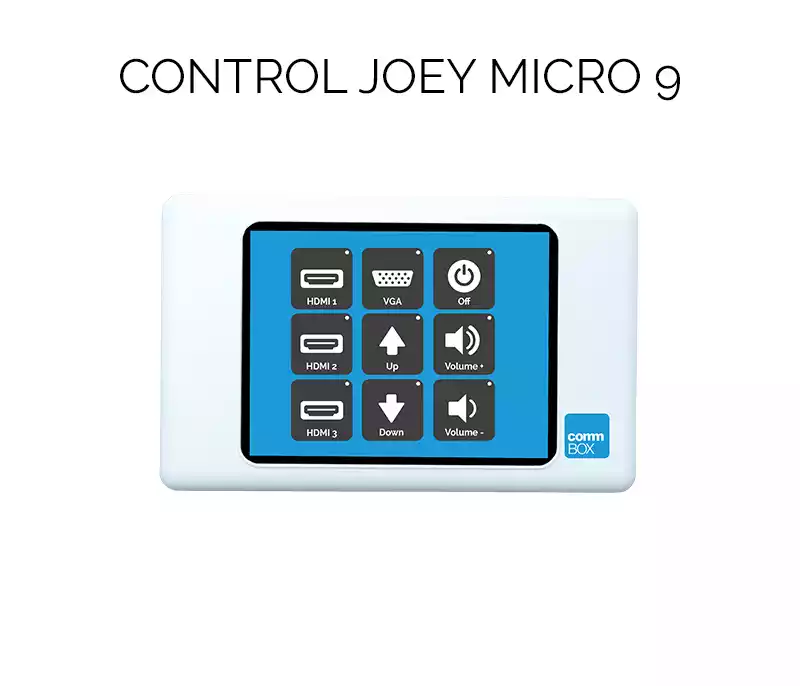

Commbox Joey Micro 9 – Wall Mounted 9 Button Capacitive Touch Control System

The CommBox ZTT2845 is a Joey Micro 9 Wall Mount Control Panel for All IR formats supported by TCS & RS232 from 300 to 115000 baud. The Joey you know and love with an all-new look and great new features. Now with capacitive touch, in a 9 button model, pre-programmed for a large range of applications. Directly control your equipment via Infra-Red and extended range RS232. The new Joey Micro 9 really is a complete control solution.

CONDITION

Brand New – A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with 36 month manufacturer’s warranty.

FEATURES

• Standard single-gang wallplate
• Access Port Via single Cat5 (or 2 Cat5 and 10-way ribbon header for optional extra functions)

QUICK SPECIFICATIONS

• Dimensions: 110 x 67 x 10mm
• Weight: 0.74kg
• Power: 12v DC at 20mA
• Ports: 1 x Programming port (3.5mm Jack), 1 x IR Bus (RJ45 Port), 1 x PIR (RJ45 Port), 2 x RS232 (RJ45 Port), 2 x IR (3.5mm Mono Jack), 1 x RS485 (RJ45 Port), 1 x USB & 4 X Relay Driver (Phoenix connector)
• Compatability: All IR formats supported by TCS. RS232 from 300 to 115000 baud. IRBus
• Number of programmable keys: 9 per “virtual screen”
• umber of virtual screens: 1 to 300 depending on application

WHAT’S INCLUDED

• 1 x CommBox Joey Micro 9 Control Panel ZTT2845
• Power supply
• User Guide
